Buckeye  Fasteners焊接螺母Ohio Nut and Bolt焊接螺丝SN 1409

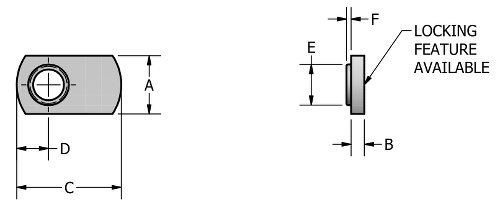

Line Drawing

Product Specifications

Thread Size
#8-32
Width (in)
7/16
Thickness (in)
3/32
Length (in)
5/8
A (in)
0.438
Tol A (in)
+0.015
-0.005
B (in)
0.094
Tol B (in)
+0.003
-0.003
C (in)
0.625
Tol C (in)
+0.015
-0.015
D (in)
0.187
Tol D (in)
+0.015
-0.015
E (in)
0.203
Tol E (in)
+0.010
-0.010
F (in)
0.030
Hole In Sheet (in)
0.219
Material
C1010 High-Welding Quality, Low Carbon Steel
Finish
Plain, Unless Specified
Threads
Unified Standard Class 2B ASME B 1.1-2003
