美国ADB Hoist Rings mfg(americandrillbushing)ADB吊环吊钩销售

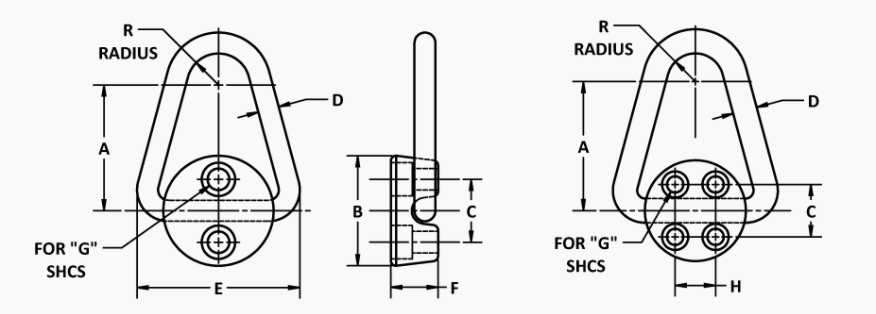

| Flip-Flop Hoist Rings | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part No. with Screws | Rated Load (lbs) | A | B | C | D | E | F | G | H | R | Installation Torque (ft-lbs) | Weight w/ Screws (lbs) |
| 2000 | 2″ | 1-3/4 | 1″ | 5/16 | 2-1/2 | 3/4 | 5/16 (2 PLCS) | 0 | 1/2 | 4-7 | .58 | |
| 2500 | 2-1/2 | 2-1/4 | 1-1/8 | 3/8 | 3-3/16 | 7/8 | 3/8 (2 PLCS) | 0 | 5/8 | 7-10 | 1.07 | |
| 5000 | 3″ | 2-5/8 | 1-1/2 | 1/2 | 3-7/8 | 1-1/8 | 1/2 (2 PLCS) | 0 | 3/4 | 20-25 | 2.06 | |
| 12000 | 4″ | 3-1/8 | 1-5/8 | 3/4 | 5-1/4 | 1-3/8 | 1/2 (4 PLCS) | 1-1/4 | 7/8 | 20-25 | 4.10 | |
| 20000 | 5″ | 3-5/8 | 2-1/16 | 1 | 6-3/16 | 1-7/8 | 5/8 (4 PLCS) | 1-1/4 | 1 | 42-50 | 7.94 | |
| Flip-Flop Mounting Screws | ||||
|---|---|---|---|---|
| Part No. | Used P/N | Screw Thread | Screw Length | Weight (lbs) |
| 23812 | 34030S | 5/16-18 | 1 1/4 | .04 |
| 23813 | 34035S | 3/8-16 | 1 1/4 | .05 |
| 23804 | 34040S | 1/2-13 | 2 | .14 |
| 23805 | 34045S | 1/2-13 | 2 1/4 | .16 |
| 33645 | 34050S | 5/8-11 | 2 3/4 | .50 |
-
